Product Description:
Our technical department's dedication to technological innovation,
research and development has resulted in us obtaining many
registered invention patents.

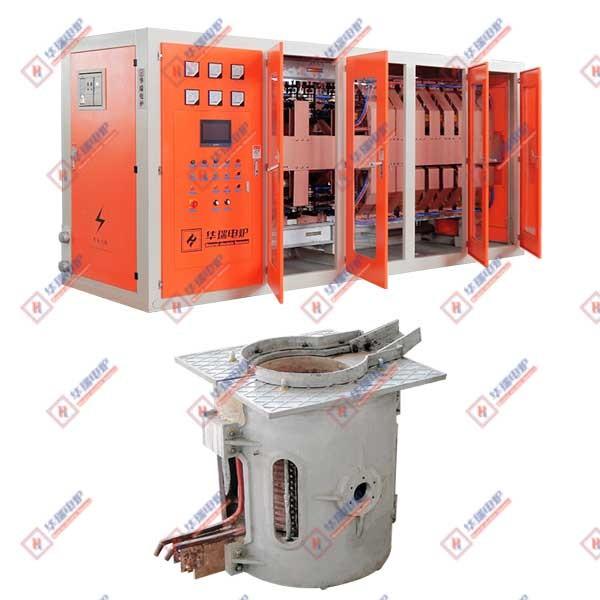

Our aluminum shell induction melting furnace is equipped with a
power supply cabinet that can synchronously power two aluminum
shell induction furnace, allowing simultaneous melting of raw
material. Darco-tech pouring technology is used for the furnace
mouth, with high-quality quartz sand, high-grade refractory cement,
and charred gemstones, to vibrate the furnace mouth into a more
sturdy and durable form.
This reinforces the induction ring firmly fixed in the aluminum
shell furnace, which greatly improves the safety and increases the
service life of the furnace lining, when compared to the
traditional use of asbestos ring and insulation ring.
Features:
High Efficiency, good Energy-Saving Effect.
The furnace has a compact structure and strong overload capacity,
resulting in low temperature around the furnace, decreasing the
amount of smoke and dust to achieve a good working environment.
Furthermore, the operation process is simple and reliable melting
operation can be guaranteed.
Uniform Metal Composition.
The furnace also has a fast heat increase speed, and a easy control
of furnace temperature, which enhances the production efficiency.
Additionally, the utilization rate of the furnace is high, and
different kinds of raw materials melting process can be easily
switched.
Technical Parameters:
Induction melting furnace power supply, thyristor serial-connected
inverter medium frequency power supply , one power supply cabinet
drives two furnaces
| Type | DX-6000Kw |
inlet power supply ( V) | 750V/ six phases |
inlet current ( A) | 2309 |
Direct current voltage (V) | 2000 |
Direct current (A) | 2800 |
medium frequency voltage (+-10%) V | 3400 |
medium frequency (Hz) | 100-250 |
medium frequency power (Kw) | 6000 |
Applications:
Huarui is proud to present its Aluminum Shell Furnace, the perfect
induction furnace for melting metals. It is renowned for its energy
saving, high safety, simple operation, high efficiency, and great
durability. It is made of aluminum shell, which is a
patent-certified material that has passed national tests and
quality management systems. Every furnace is designed to meet the
specific needs of each customer, and therefore the model number is
customizable.
The minimum order quantity is one set. The price is negotiable, and
the packaging is ensured to be waterproof. Delivery time is usually
between 30 and 45 days. Payment terms are T/T and L/C. Huarui is
confident in its ability to provide up to 1,000,000 sets per year.
Huarui Aluminum Shell Furnace is the perfect choice for melting
metals. It is energy-saving, safe, easy to operate, efficient, and
durable. Experience the advanced technology and excellent quality
of Huarui today.
Support and Services:
Aluminum Shell Furnace Technical Support and Service
We provide technical support and service for our Aluminum Shell
Furnace product. Our team of experts are available to answer any
questions you may have about the product, provide technical
assistance, and help troubleshoot any problems you may encounter.
We also offer training and installation services to ensure that you
get the most out of your Aluminum Shell Furnace.
If you ever need help or have any questions, please don't hesitate
to contact us. Our team of experts are always available to help you
get the most out of your Aluminum Shell Furnace.
Packing and Shipping:
Aluminum Shell Furnace Packaging and Shipping:
- The Aluminum Shell Furnace will be carefully packed in a cardboard
box.
- Each box will be secured with bubble wrap for extra protection.
- The box will be sealed with tape to ensure the package stays intact
during shipping.
- The package will be shipped via a reliable courier service.
